SERVICE PORTFOLIO

FIRE ALARM PLANS

Multi‑building fire alarm design with full device layouts, code notes, and an engineered riser diagram. Suitable for commercial facilities and single‑family homes, with all drawings created to meet state code requirements.

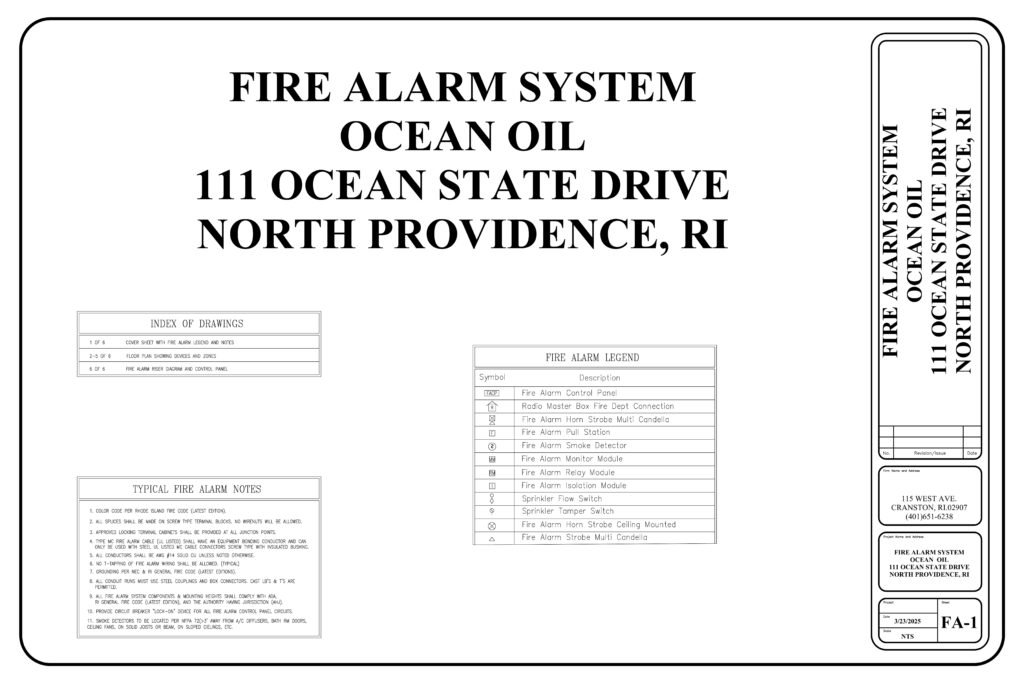

Ocean State Oil Cover

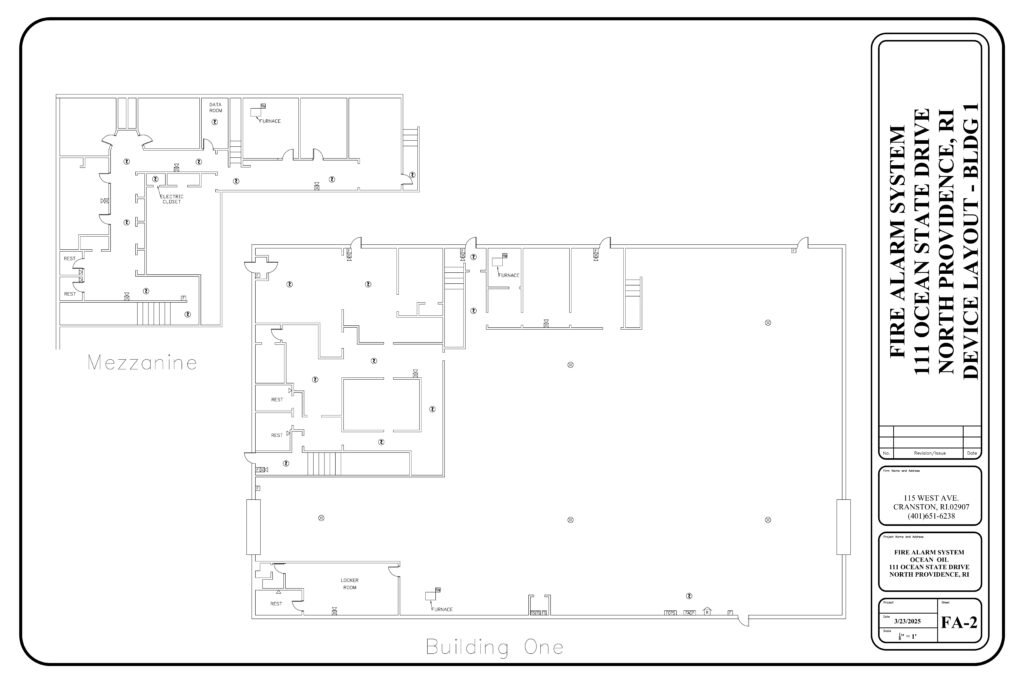

Ocean State Oil BLDG1

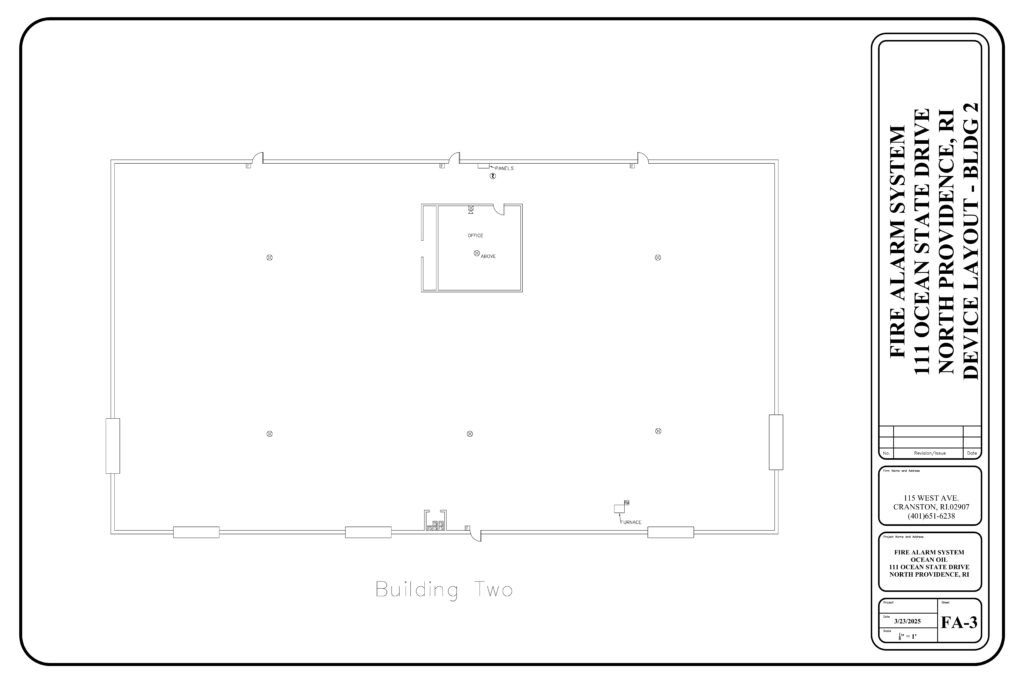

OCEAN STATE OIL - NEW-D-CROWN-BUILDING 2

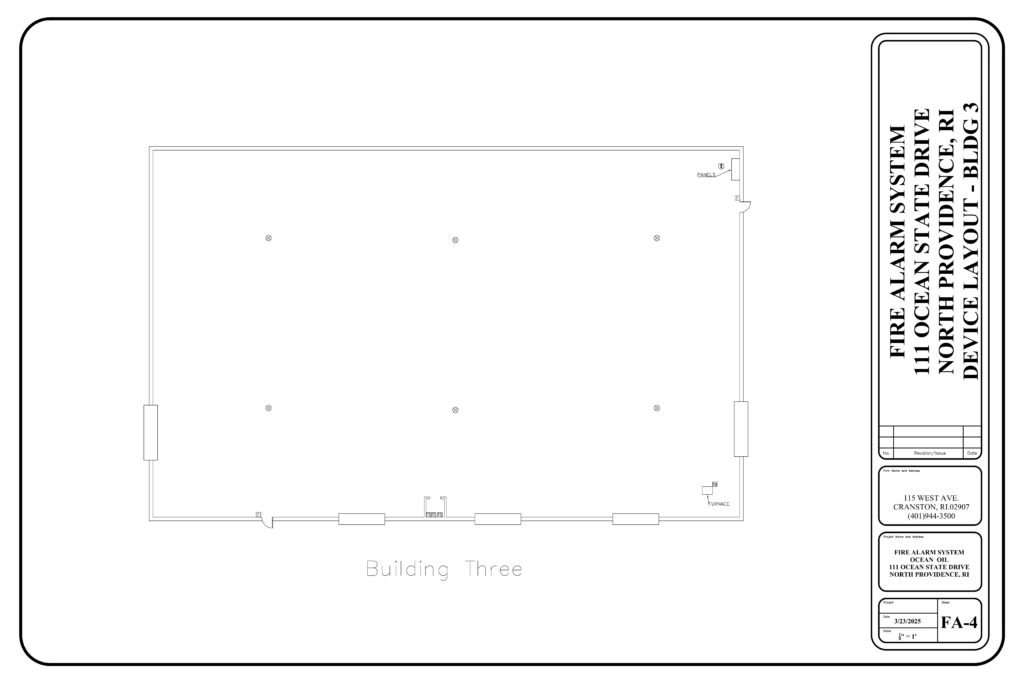

Ocean State Oil BLDG 3

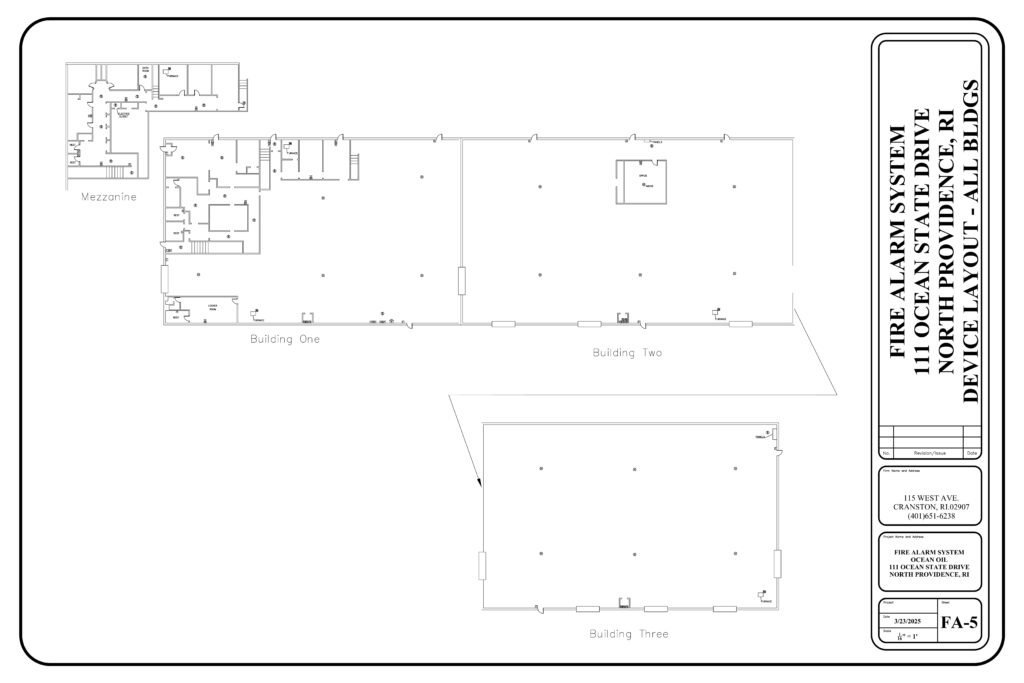

OCEAN STATE OIL - NEW-D-ALL BUILDINGS

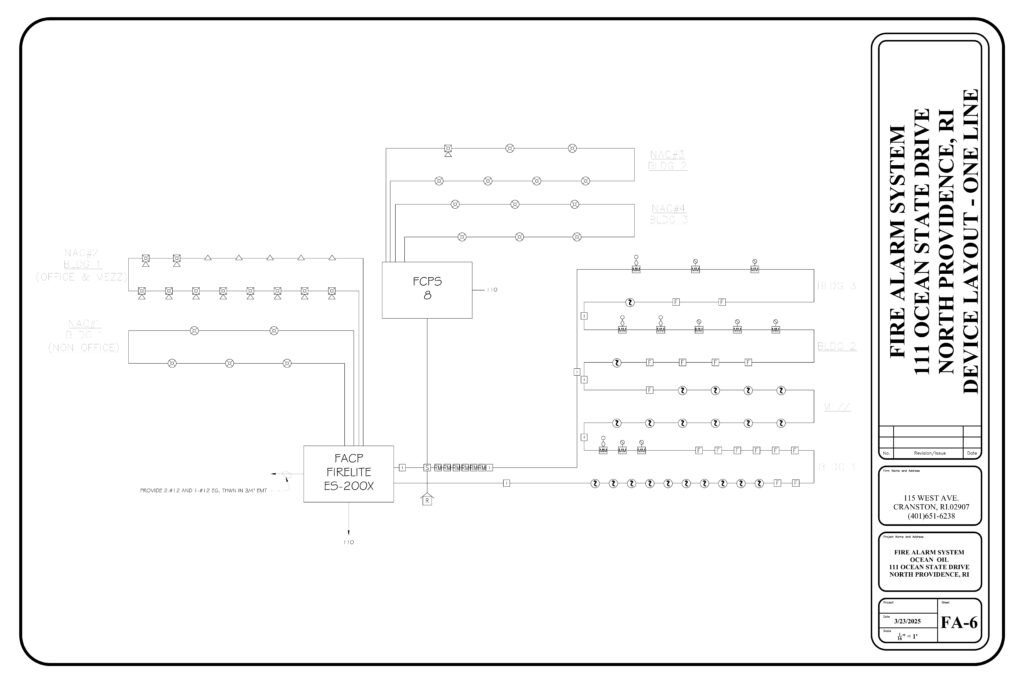

OCEAN STATE OIL - NEW-D-ONE LINE

Deliverables

  • Floor-by-floor device placement
  • Smoke detectors, heat detectors, horn strobes, pull stations
  • Monitor modules, relay modules, NAC circuits
  • FACP location and equipment legend
  • Installation notes for contractors
  • NAC circuits, power supplies, and annunciator connections
  • Applicable codes and standards
  • Ready for submission to AHJ, contractor, or engineer

NEED PERMIT-READY FIRE ALARM PLANS FOR YOUR NEXT PROJECT?

Get accurate layouts, engineered riser diagrams, and clean documentation—delivered fast and tailored to your project requirements.

Request Quote
